What is included with each part number?

When ordering TUFFLOK parts, the obvious question is: What is in the box? A short description of each part category with items included will help contractors better understand what to expect.
Note:
All parts shipped together unassembled. A contractor needs to assemble all couplers as required. Contact us if you need parts to be pre-assembled.
First, let’s talk about copper piping. There are two categories of pipes, soft and hard. Some inserts for couplers must be used with soft, some with hard, and some will accommodate both soft or hard pipes. Ball valves use black inserts to accommodate different copper pipe wall thickness.
Caution:
It is important to remember to use the correct insert for each application.
We manufacture three different types of inserts. Each one is designed to correctly perform with specific copper type.
Soft copper: Use Yellow color inserts
Hard copper: Use Silver color inserts
Ball valves: Use Black color inserts
Each component we manufacture starts with the prefix which identifies the component. These prefixes also the same for components that are ETL listed.
TLC - PASS THROUGH COUPLERS | |||
The inlet and outlet are equal in size, and the coupler can be reversed. Different inserts are needed for some parts when working with soft or hard copper tubing. If you need additional different types of inserts, you can order them separately. | |||
Image | Couplers | Compression nuts | Inserts |
1 pc ea Pass through coupler | 2 pcs ea | For 02, 04 – 1pc yellow + 2 pcs silver inserts. For 03, 05 and above 2 pcs silver inserts. | |
TLA - REDUCING COUPLERS | |||
The inlet and outlet are different, with the inlet larger than the outlet. Different inserts are required for soft or hard copper tubing. If you need additional different types of inserts, you can order them separately. | |||
Image | Couplers | Compression nuts | Inserts |
1 pc ea Reducing coupler | 2 pcs ea | For 02, 04 – 1pc yellow + 2 pc silver inserts. For 03, 05 and above 2 pcs silver inserts. | |
TCAP - TEST PORT PLUGS | |||
It is used to test the system for leaks. Each test cap is shipped with the one-way brass test port and test cap. The user needs to install the test port using Teflon tape. | |||
Image | Couplers | Compression nuts | Inserts |
1 pc ea Test Cap | 1pc ea | For 02, 04 – 1pc yellow + 1 pc silver inserts. For 03, 05 and above 1 pc silver insert. | |
CAP - END PIPE PLUGS | |||
It is used to block unused ports permanently. Different inserts are required for soft or hard copper tubing. If you need additional different types of inserts, you can order them separately. | |||
Image | Couplers | Compression nuts | Inserts |
1 pc ea Cap | 1pc ea | For 02, 04 – 1pc yellow + 1 pc silver inserts. For 03, 05 and above 1 pc silver insert. | |

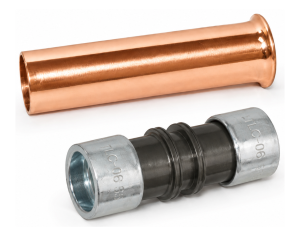

TLT - REMOVABLE FALRE COUPLINGS | |||
It is used to block unused ports permanently. Different inserts are required for soft or hard copper tubing. If you need additional different types of inserts, you can order them separately. | |||
Image | Couplers | Compression nuts | Inserts |
1 pc Flare | TLC and TLA couplers include compression nuts and inserts. | ||
BCY - BRANCH CONNECTORS | |||
The branch connectors have three ports of equal size. All ports are ready for TUFFLOK pass-through or reducing couplers. Different inserts are required for soft or hard copper tubing. If you need additional different types of inserts, you can order them separately. | |||
Image | Couplers | Compression nuts | Inserts |
3 pcs Pass through or reducing couplers | TLC and TLA couplers include compression nuts and inserts. | ||
BEND - 45 and 90 DEGREES ELBOWS | |||
The elbow assembly has two ports of equal size. All ports are ready for TUFFLOK pass-through or reducing couplers. Different inserts are required for soft or hard copper tubing. If you need additional different types of inserts, you can order them separately. | |||
Image | Couplers | Compression nuts | Inserts |
2 pcs Pass through or reducing couplers | TLC and TLA couplers include compression nuts and inserts. | ||
BSC - BALL VALVE ASSEMBLY | |||
The ball valve assembly provides equal pipe size for the inlet and outlet. Both sides are ready for TUFFLOK couplers. Different inserts are required for soft or hard copper tubing. If you need additional different types of inserts, you can order them separately. | |||
Image | Couplers | Compression nuts | Inserts |
2 pcs Pass through or reducing couplers | 2 pcs black inserts. TLC and TLA couplers include compression nuts and additional inserts. | ||
Custom packaging configuration:
If you need custom packaging for your application, please contact our sales team to help you with this request.
Tool kit configuration:
We provide a fully loaded tool kit for working with our couplers. We make our kits affordable with quick repair turnaround, easy financing, and refurbished tools availability.
Model Number
Qty Included
Description
45KN-TOOLCASE
1 pc
Case with
Custom foam
45KN-HANDTOOL
1pc
Universal Hand tool 10,000psi
45KN-CLMP-0209
1 set 2pc
Universal Clamp Holder
1/4″ through 1-1/8″
45KN-INS-02
1 set 2pc
Jaw Set 1/4″
45KN-INS-03
1 set 2pc
Jaw Set 3/8″
45KN-INS-04
1 set 2pc
Jaw Set 1/2″
45KN-INS-05
1 set 2pc
Jaw Set 5/8″ 45KN-INS-06
1 set 2pc
Jaw Set 3/4″
45KN-INS-07
1 set 2pc
Jaw Set 7/8″
45KN-INS-09
1 set 2pc
Jaw Set 1-1/8″
45KN-CLMP-11
1 set 2pc
Dedicated Clamp Set 1-3/8″
45KN-CLMP-13
1 set 2pc
Dedicated Clamp Set 1-5/8″
Model Number | Qty Included | Description |
45KN-TOOLCASE | 1 pc | Case with |
45KN-HANDTOOL | 1pc | Universal Hand tool 10,000psi |
45KN-CLMP-0209 | 1 set 2pc | Universal Clamp Holder |
45KN-INS-02 | 1 set 2pc | Jaw Set 1/4″ |
45KN-INS-03 | 1 set 2pc | Jaw Set 3/8″ |
45KN-INS-04 | 1 set 2pc | Jaw Set 1/2″ |
45KN-INS-05 | 1 set 2pc | Jaw Set 5/8″ |
45KN-INS-06 | 1 set 2pc | Jaw Set 3/4″ |
45KN-INS-07 | 1 set 2pc | Jaw Set 7/8″ |
45KN-INS-09 | 1 set 2pc | Jaw Set 1-1/8″ |
45KN-CLMP-11 | 1 set 2pc | Dedicated Clamp Set 1-3/8″ |
45KN-CLMP-13 | 1 set 2pc | Dedicated Clamp Set 1-5/8″ |
